There are other very efficient ways of transmitting power through the system without the use of involute gears. This is Elfino, an excellent introduction into the wonderful world of kinetic sculptures and a delight to watch. The World's Easiest Clock. How to Make a Wooden Bearing Pack. It is only when we have gears rapidly moving together that we actually need the perfect involute gears with close tolerances that we've all learned about in physics class.

Aloha Bob, it is nice to hear from you and I'm glad you enjoyed viewing my site. Elfino is a simple-to-build spring driven wall mounted sculpture with a long yet variable run time. Floating Wheel Clock Plans. By soaking the bearings overnight in mineral spirits and washing out the grease we've been able to double in some cases the run time of the Zinnia. Wood dowels are also not created equally.

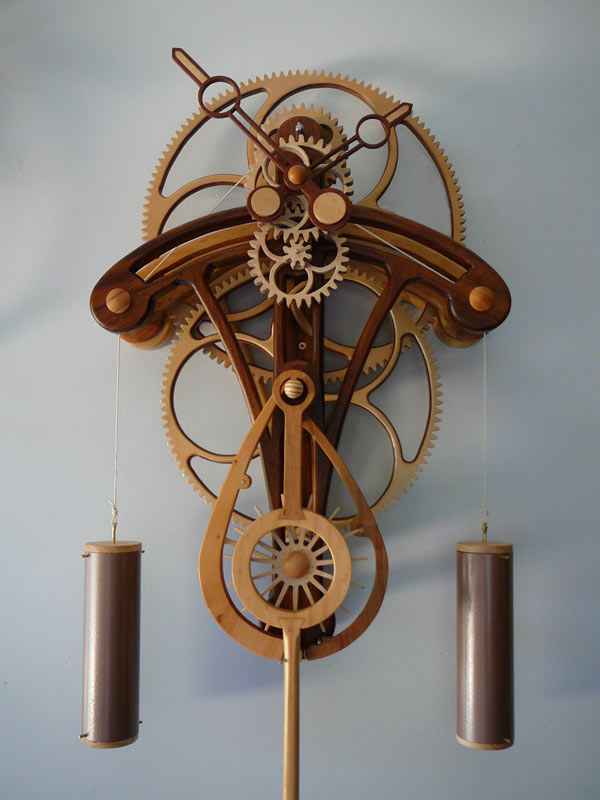

Boyer says some wooden movement clocks that are years old are still in working order today. Genesis by Clockmaker Isaac Neuman demonstrating weights. The large tube is the weight tube that contains the mass that drives the clock. The purpose of the counterweight tube is only aesthetic, allowing the clock to look balanced, and to keep the wind cord from tangling. Is it necessary to have a full wind for successful long run time?

In the normal grandfather clock the fastest wheel only turns one revolution per minute. There are medieval metal clocks that are still operational with simple triangular shaped tooth forms.

Recommending that the wheels be balanced first allows me to specify in the Zinnia plans which arms are the best for the placement of the imbalancing weights. Evil Twin Mechanical Gizmo. Bird Of Paradise Clock Plans.

The Toucan is a wonderful, fun and easy to build clock. KwikPro turns the traditional cordless-tool format on its head. When the clock stops with the drive weight on the scale he can simply read the number of pounds of drive weight required off of the scale.

Boyer's Steampunk Impulse Engine. As complicated as the clocks may look, Boyer says that, if one has the necessary tools, video file splitter software then just about anyone can build clocks from his plans.

Rigid Heddle Tabletop Weaving Loom. This slow transmission of forces allows for some very forgiving tooth forms. For our light duty kinetic sculpture purposes the grease inside the bearings actually increases the internal friction and can cause shortened run times.

Stay tuned, as we have a couple more plans nearly ready for release on our website. Clocks run in only once direction. As the clock runs, the drive weight slowly lowers toward the floor.
